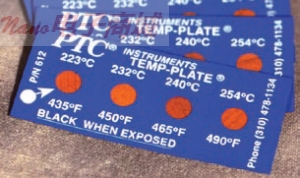

溫度記錄貼紙 Temperature Recording Decal

TEMP-Plates?適用于各種溫度范圍是在各種精確到±1％，是N.I.S.T.二級標準。每包10包含的生產批號。它們的微型尺寸允許安裝在其他設備上。

Temp-Plates? are available in a variety of temperature ranges with an accuracy of ±1% and are calibrated on N.I.S.T. secondary standards. Each package of 10 contains a lot number for traceability. Their miniature size allows installation where other devices are impractical.

Temp-Plate?溫度記錄貼紙僅有3/4"x 1- 3/4" 0.01厚。Temp-Plates?可粘附大多數表面抗溶劑，燃料，油脂，油，水和蒸汽。

The Temp-Plate? Decal measures only 3/4"x 1- 3/4"and is 0.01" thick. Temp-Plates? stick to most surfaces and resist solvents, fuels, grease, oil, water and steam.

?

以下是Temp-Plate?的應用。監控過熱磨損和摩擦在機械部件如軸承，齒輪箱，傳動殼體，散熱器和熱交換器。檢查過熱的電子部件，如管，變壓器，電阻器，電路板，和晶體管。監控電氣設備，如變壓器，繼電器，發電機，整流器，電機外殼和軸承，和地下電力線路。監控車輛和商用飛機的預防性維護，如發動機，液壓系統，輪轂，輪胎，剎車，沖擊，加熱系統和航空電子設備。防止物料如藥品，心臟起搏器，食品，化學品和電影相關的物質變質。

The following are only a few of the many applications for which the Temp-Plate? can be used. Monitoring overheating wear and friction in machinery parts such as bearings, gear boxes, transmission housings, radiators and heat exchangers. Check overheated electronic parts such as tubes, transformers, resistors, circuit boards, and transistors. Monitor electrical equipment such as transformers, relays, generators, rectifiers, motor casings and bearings, and underground power lines. Monitor vehicles and commercial aircraft for preventative maintenance such as engines, hydraulic systems, wheels, tires, brakes, shocks, heating systems, and avionics. Prevent heat related deterioration of materials such as pharmaceuticals, pacemakers, foods, chemicals, and film.

技術資料

精度： ±1％

外形尺寸： 3/4 "x 1-3 / 4" (1.9 x 4.4 cm)

花紙厚度： 0.01“（0.025厘米）的

重量： 1英鎊（454克）

雙刻度： °F和℃，

Technical Data

Accuracy: ± 1%

Dimensions: 3/4 "x 1-3 / 4" (1.9 x 4.4 cm)

Decal Thickness: 0.01 "(0.025 cm)

Shipping Weight: 1 lb. (454 g)

Dual Scale: °F and °C

?
