Raytek Comapact CM系列紅外傳感器電壓輸出與3'電纜

雷泰CM傳感器的是OEM和最終用戶的應用的理想解決方案 - 體積小巧，功能強大，價格合理，易于安裝。

取代了傳統的接觸式探頭，可擴展的0-5 V，J型或K輸出

寬溫度范圍：-4°F至932°F（-20至500oC）°

堅固的13:1光學90％的能源

堅固的IP 65（NEMA-4）不銹鋼外殼

傳感器狀態/自我診斷指示燈LED

雷泰CM傳感器的被廣泛的制造工藝和OEM應用設計的連續溫度監控。該傳感器提供了一個功能強大，結構緊湊，集成傳感器的紅外溫度測量的優勢。CM傳感器可以很容易地取代傳統的接觸式探針，J型或K型熱電偶輸出，用戶可擴展0-5伏的輸出。機載電子設備的傳感器是一個堅固的IP 65（NEMA-4）不銹鋼外殼保護，無需冷卻功能允許傳感器在環境溫度可達160°F（70°C）。內置的傳感器健康LED傳感器的工作狀態和輔助線指標提供了方便，解決最初的傳感器設立。雖然體積小，裝有先進的功能，包括RS232數字接口，24伏直流報警，峰值保持，谷值保持，

可變平均信號處理，目標發射率可調設置窗口透射率可調CM。的DataTemp多點軟件是包括每個傳感器允許用戶配置所有的可編程傳感器變量。內容包括：軟件

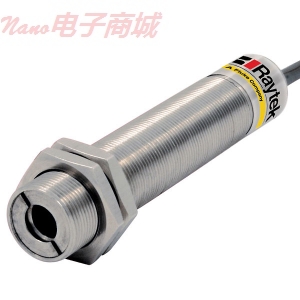

Comapact CM-Series Infrared Sensor Voltage Output with 3' Cable

The Raytek CM Sensor is the ideal solution for both OEM and end-user applications – compact, powerful, affordable and easy to install.

Replaces traditional contact probes with a scaleable 0-5 V, type J or K output

Wide temperature range: -4oF to 932oF (-20 to 500oC) °

Rugged 13:1optics at 90% energy

Rugged IP 65 (NEMA-4) stainless steel housing

Sensor status/self-diagnostic indicator LED

The Raytek CM Sensor is designed for continuous temperature monitoring in a broad range of manufacturing processes and OEM applications. The sensor provides the advantages of infrared temperature measurement in a powerful, compact, integrated sensor. The CM sensor can easily replace traditional contact probes with a J-type or K-type thermocouple output, or with a user scaleable 0-5 volt output. The sensors onboard electronics are protected by a rugged IP 65 (NEMA-4) stainless steel housing, allowing the sensor to function in ambient temperatures up to 160°F (70°C) without cooling. The built-in sensor health LED provides a convenient on-line indicator of the sensor's operating status and aids in troubleshooting initial sensor set up. Although small in size, the CM is loaded with advanced features including; RS232 digital interface, 24 volt DC alarm, peak hold, valley hold, variable averaging signal processing, adjustable target emissivity settings and adjustable window transmissivity. DataTemp Multidrop software is includes with each sensor allowing the user to configure all programmable sensor variables.
What's Included:
Software
