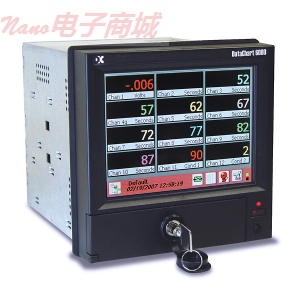

美國Monarch DC6-3-12-0-0-0-0無紙記錄儀

12 universal inputs, 6 math channels, 100/240 Vac w/screw terminals,512MB internal memory

12個通用輸入，6個數學通道，100/24??0 VAC W /螺釘接線端子，512MB內部存儲器

再沒有像DataChart 6000這樣的數據記錄儀了！

6或12個通用輸入

多達4個脈沖/頻率輸入

6或12路繼電器輸出

可聯網使用標準的以太網端口

IP65/NEMA4額定前面板

車載媒體驅動器-壓縮閃存，USB（記憶棒，外置驅動器等），智能數字（SD）

觸摸屏控制

觸筆直接在屏幕上的圖表注釋

紅外端口

內置OPC服務器

內置電子郵件客戶端

DC6000是最先進的紙記錄系統-包括最新的測量，通信，接口和工藝技術，采用了高對比度的5.6''彩色有源矩陣TFT液晶顯示觸摸屏。

如果你愿意用你的手指或內置手寫筆，可輕松地進行數據錄入和系統導航。一個直觀圖像驅動菜單輕松引導您設置和控制屏幕。顯示生成器功能使得設置自定義屏幕極其簡單。設計多達50個自定義顯示含有各種組合的指示類型類型，如水平和垂直條形圖，大和小的數字指示和水平或垂直的趨勢。屏幕上的幫助是可以隨時通過整個菜單系統幫助您設置和使用。存儲數據時，DC6000非常靈活。數據可以存儲到內部非易失性閃存RAM或任何可用的存儲驅動器，包CompactFlash?和USB。

可編程記錄啟動和停止時間，允許用戶在啟動和停止記錄設定時間間隔。數據也可以存儲到通過以太網使用可選的軟件的遠程電腦上。此外，內置的OPC服務器允許任何符合OPC標準的客戶端軟件來連接，通信，檢索數據。

DC6000采用多層安全，以保護存儲數據的完整性。所有數據都存儲在一個加密的二進制格式的防止數據的篡改，并最大限度地壓縮。前訪問介質門是上鎖的，以防止未經授權的訪問，內部移動存儲介質。使用記錄設置菜單，用戶可以選擇哪些渠道來記錄，樣品儲存率，是否記錄報警和/或事件，并開始/停止記錄會話的時間和日期。在此菜單中選擇的數據文件的儲存位置，以及與該數據文件名 ??。用戶還可以設置開始或停止記錄報警級別或外部觸發輸入裝置

The DataChart 6000 is like no other paperless recorder available!

6 or 12 universal inputs

Up to 4 pulse/frequency inputs

6 or 12 relay outputs

Networkable using standard Ethernet port

IP65/NEMA4 rated front panel

Onboard media drives - CompactFlash?, USB (Memory stick, external drive etc.), Smart Digital (SD)

Touch screen control

Direct on-screen chart annotation with integral stylus

Infrared port

Built-in OPC server

Built-in E-mail client

The DC6000 is the most advanced paper recording system available - incorporating the latest in measurement, communication, interface and process technologies, utilizes a high-contrast 5.6'''' color Active Matrix TFT LCD display with a rugged touch screen.

Use your finger or the onboard stylus, if you prefer, to easily perform data entry and system navigation. An intuitive icon-driven menu guides you through easy to follow setup and control screens. The Display Builder feature makes setting up custom screens extremely simple. Design up to 50 custom displays containing various combinations of indicator types such as horizontal and vertical bar graphs, large and small digital indicators and horizontal or vertical trends. On-screen help is available throughout the menu system to assist you anytime during setup and use.

When it comes to storing data, the DC6000 is extremely flexible. Data can be stored to the non-volatile internal flash RAM or any of the available storage drives including CompactFlash? and USB provided there is media present.

Programmable record start and stop times allow the user to start and stop recording at predetermined intervals. Data may also be stored to a remote PC via Ethernet using the optional Exhibitor Software. In addition, the built in OPC Server allows any OPC compliant software client to connect to, communicate with and retrieve data.

The DC6000 utilizes many layers of security to protect the integrity of your stored data. All data is stored in an encrypted binary format which

prevents data tampering and maximizes compression. The front access media door is lockable to prevent unauthorized access to the internal removable storage media.

Using the Record Setup menu, the user can select which channels to record, the sample storage rate, whether to record alarms and/or events, and the start/stop time and date for the record session. The location of the data file is selected in this menu along with the data file name. The user can also configure the unit to start or stop recording on an alarm level or an externally triggered input.
